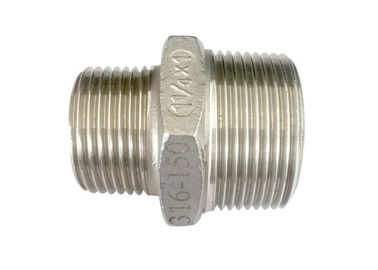

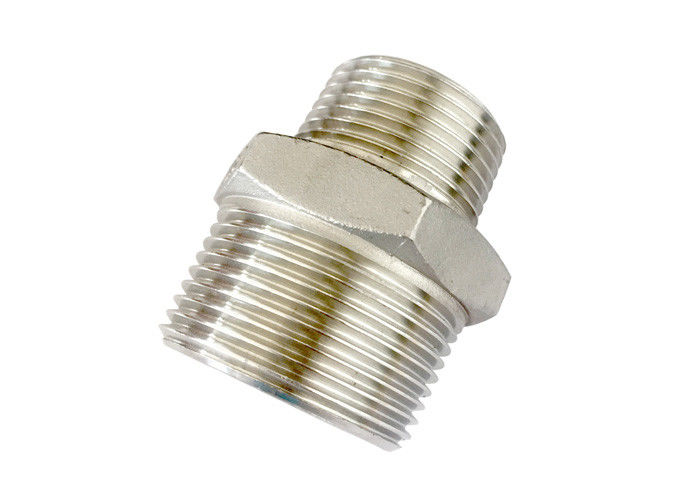

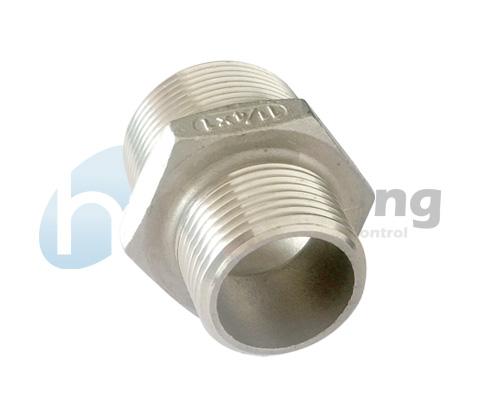

Npt, bsp, bspt berulir 2 Mpa tekanan 304 stainless steel mengurangi heksagon puting susu
Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
Detil Deskripsi produk
| Bahan: | 304, 316, CF8M, 1.4408 dll. | Jenis benang: | BSP, NPT, BSPT |
|---|---|---|---|
| Suhu bekerja: | 25-220 derajat | Tekanan kerja: | 2 MPA |
| Sertifikat: | CE | Standar: | ASTM, ANSI, JIS |
| Cahaya Tinggi: | welded pipe fittings,threaded pipe fittings |
||
Npt, bsp, bspt berulir 2 Mpa tekanan 304 stainless steel mengurangi puting segi enam
Bahan: 304, 316 atau disesuaikan.
Thread: BSP, BSPT atau NPT.
| UKURAN | 1/4 "* 1/8" | 3/8 "* 1/8" | 3/8 "* 1/4" | 1/2 "* 1/8" | 1/2 "* 1/4" | 1/2 "* 3/8" |
| SEBUAH | 12.0 | 13.0 | 13.0 | 16,0 | 16,0 | 16,0 |
| B | 8.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 |
| L | 31,0 | 30,0 | 31,0 | 33,0 | 34,0 | 35,0 |
| W | 16,0 | 20,0 | 20,0 | 23,0 | 23,0 | 23,0 |
| UKURAN | 1/2 "* 3/8" | 3/4 "* 1/2" | 1 "* 1/2" | 1-1 / 4 "* 1" | 1-1 / 2 "* 1-1 / 4" | 2 "* 1-1 / 2" |
| SEBUAH | 16,0 | 18,0 | 20,0 | 22,0 | 23,0 | 26,0 |
| B | 6.0 | 12.0 | 12.0 | 10,0 | 12,5 | 14.0 |
| L | 35,0 | 46,0 | 48,0 | 52,0 | 56,5 | 63,0 |
| W | 23,0 | 29,0 | 36,0 | 45,0 | 52,0 | 63,0 |
 |
|
Perbedaan antara bsp, bspt dan tipe npt thread adalah sebagai berikut.
 |  |
